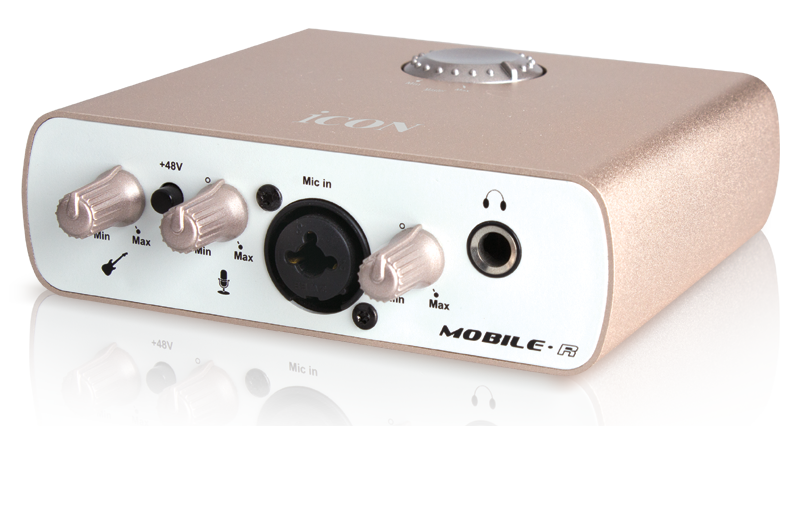

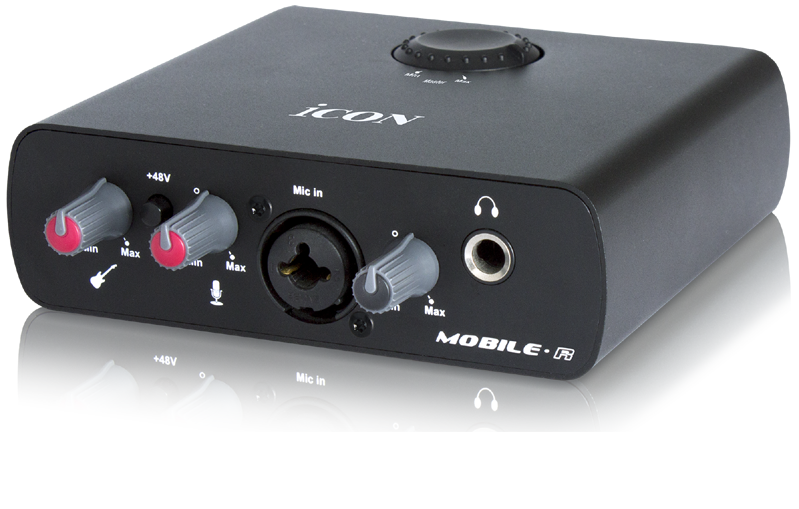

Mobile R
● 24 位 96/192 千赫兹 1 个麦克风输入 / 1 个吉他输入、2 个输出 USB 录音接口
● 2×2 模拟输入 / 输出全双工录音及回放功能

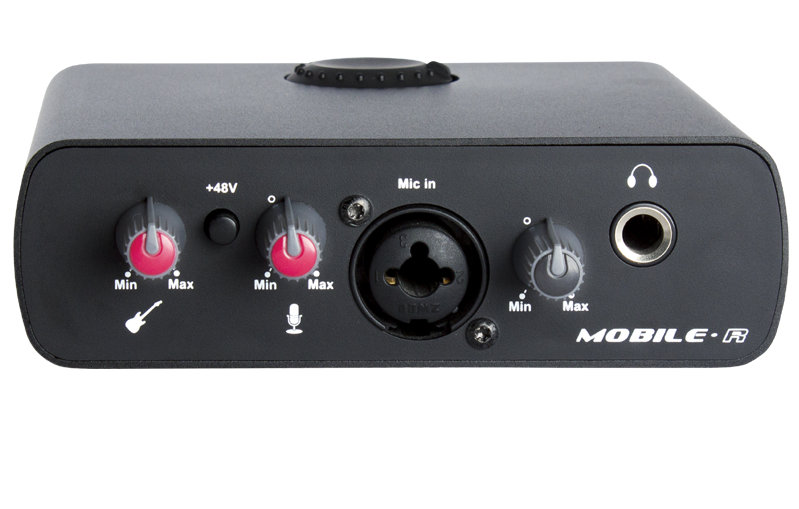

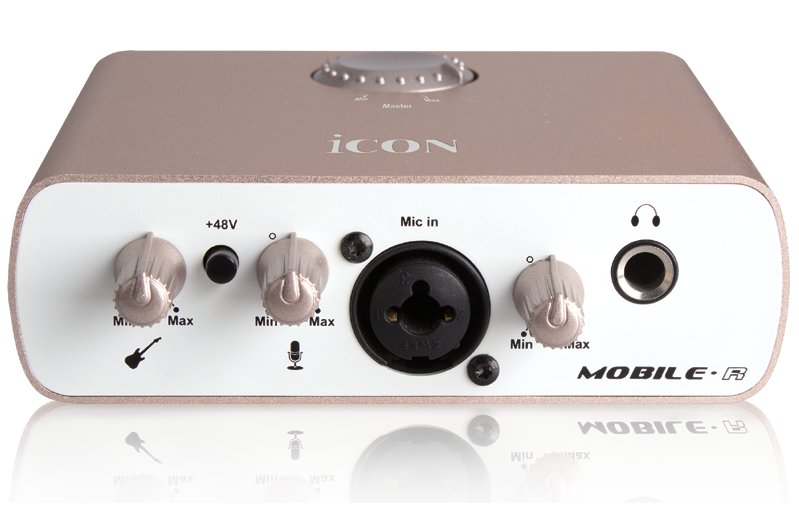

● ICON 创新专属麦克风前置放大器，配备独立增益控制及幻像电源开关
● ICON 创新专属吉他前置放大器，配备独立增益控制

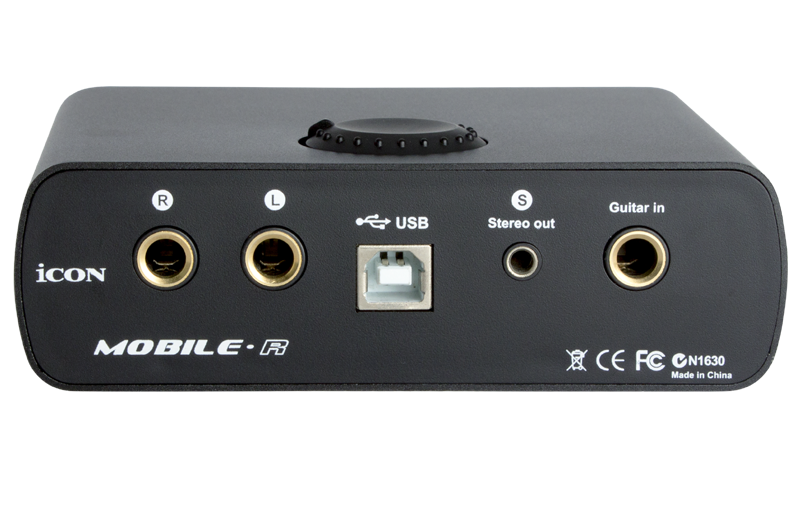

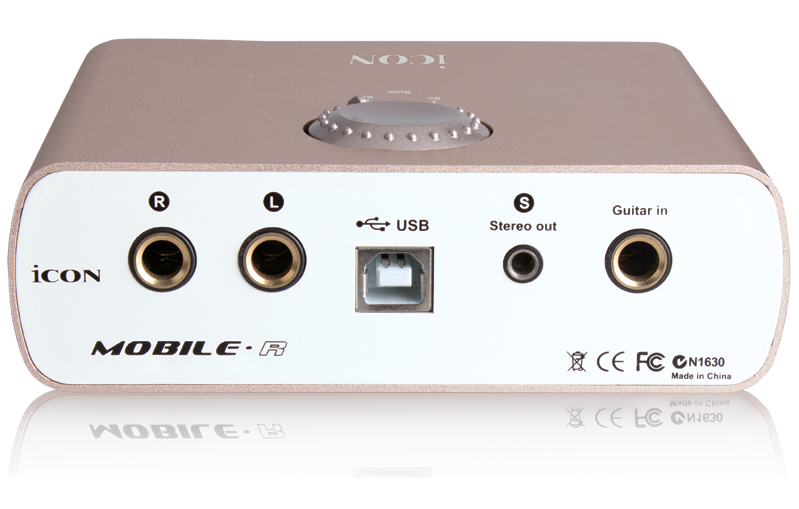

● 2 个模拟输出（配备 1/4 英寸 TRS 接口）或立体声输出（配备 3.5 毫米耳机接口）
● 顶部面板设有主音量控制旋钮
● 1 个耳机输出，支持音源分配及独立音量控制
● 通过软件控制面板实现灵活的通道路由
● 配备 USB2.0 高速接口，支持 USB 总线供电
● 兼容 DirectSound、WDM 及 ASIO2.0 标准
● 适配 Mac OS（英特尔芯片 Mac）及 Windows XP、Vista（32 位 / 64 位）、Windows 7（32 位 / 64 位）和 Windows 8（32 位 / 64 位）系统
● 全双工模式，支持同时录音 / 回放
| Name | Spec |
| Mic Input: | |
| Frequency Response: | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range: | 93dB, A-weighted |
| Signal-to-Noise Ratio: | -93dB, A-weighted |
| THD+N: | <0.0061% (-90dB) |
| Crosstalk: | -87dB @ 1kHz |
| Input Impedance: Mic in: | 1.8K Ohms, typical |
| Adjustable Gain: | +34dB |
| Inst Input: | |
| Frequency Response: | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range: | 93dB, A-weighted |
| Signal-to-Noise Ratio: | -93dB, A-weighted |
| THD+N: | <0.0061% (-90dB) |
| Crosstalk: | -87dB @ 1kHz |
| Input Impedance: Inst in: | 500K Ohms, typical |
| Adjustable Gain: | +31dB |
| Line Outputs 1/2 (Stereo, Unbanced): | |
| Frequency Response: | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range: | 100dB, A-weighted |
| Signal-to-Noise Ratio: | -100dB, A-weighted |
| THD+N: | <0.003% (-90 dB) |
| Crosstalk: | -100dB @ 1kHz |
| Nominal Output Level: Unbalanced: | +4dBV, typical; |
| Maximum Output Level: | +11dBV, typical; |
| Output Impedance: | 150 Ohm |
| Load Impedance: | 600 Ohm minimum |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load): | |
| Frequency Response: | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms: | 90 mW into 100 Ohms |
| THD+N: | <0.06% (-66dB) |
| Signal-to-Noise Ratio: | -90dB, A-weighted |
| Max Output Level into 100 Ohms: | +2.0dBV, typical |
| Output Impedance: | 75 Ohm |
| Load Impedance: | 32 to 600 Ohms |
- Windows XP - Windows 10
